Product Description:
This fixed EX LPG methane gas detector adopts non-standard agreement or MOdBUS protocol for data collection and transmission. it can be 4-20mA signal output as well.The transmitter detects the combustible gas concentration on the spot and send signal to a contorller or a external alarm lamp.
Detector specifications:
| Size: | 144 mm * 190 mm * 74 mm |
| Weight: | about 1130 g |
| Sensor types: | electrochemistry method |
| Response time: | ≤30s |
| Working pattern: | continuous work |
| Working voltage: | DC24V |
| Output signal: | RS485 or 4-20mA |
| Output way: | Four wire or 3 wire 3*1.5MM2 |
| Communication protocol | Modbus RTU protoco;（Optional) |
| Optional function: | with the alarm lamp need extra $20/pc |
| Temperature range: | - 20 ℃ ~ 50 ℃ |
| Humidity: | 15% ~ 90% RH (No condensation) |
| Certificate: | CE,ATEX |
| Explosion-proof number: | CE101084 |
| Explosion-proof marks: | Exd II CT6 |
| Transmission distance: | <1000 m |

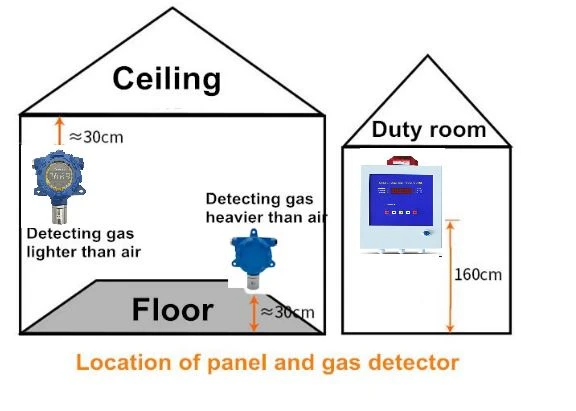

Installation:

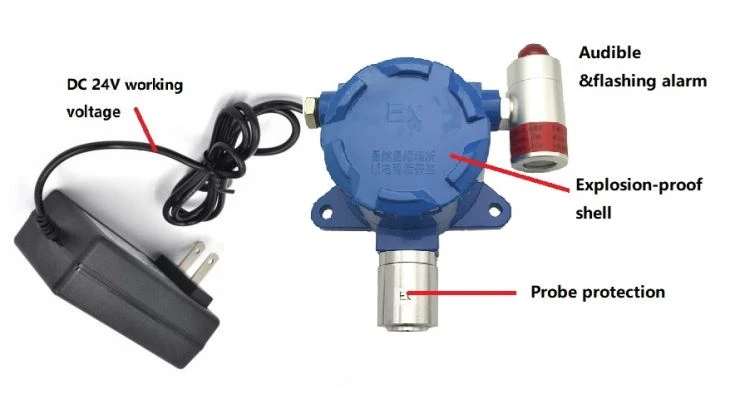

Fixed gas detector features:
Can be 4-20mA signal output or RS485 with Modbus protocol
Suitable for PLC,DCS system,Working voltage is 24V, 12V is availiable
With CE,ATEX Certificate,explosion proof, water-dust proof
Easy installation,imported sensor with quickly response
With relay output,can connected with external device to control its on/off, like a fan or solenoid valve.
