Gas Alarm Controller

1.Brief introduction:

This gas alarm controller is latest product equipped with 4.3 inch color touch screen, with a friendly human-machine interface. The control panel supports multiple communication modes, such as RS485, RF433, and 4-20mA.

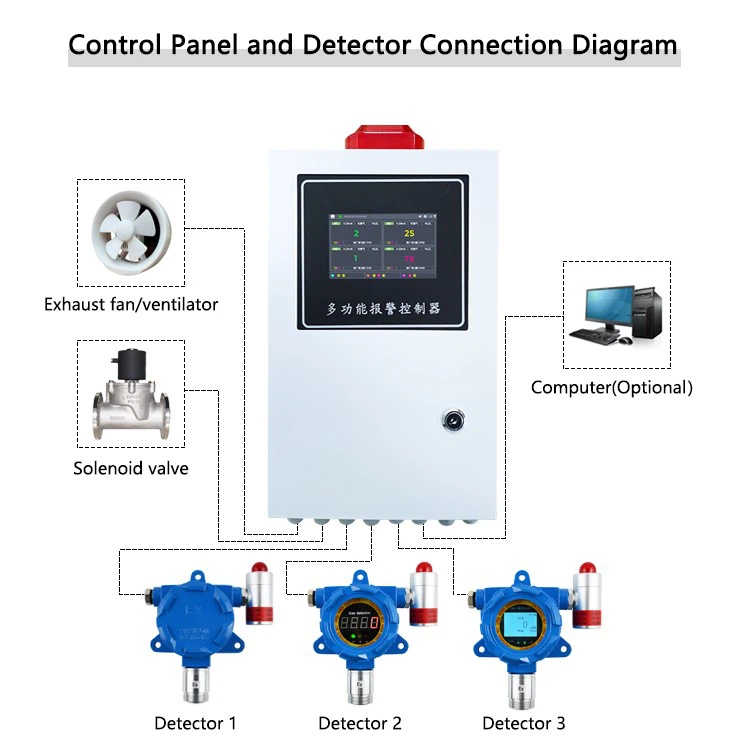

The gas alarm controller collects the analog signal input by up to 8 pcs transmitters, or directly collects the digital signal of the bus transmitters up to 255 pcs, and displays the corresponding gas type, concentration, unit and state on the display screen after data processing by the internal microprocessor. When the gas concentration at site reaches or exceeds the preset alarm level, the alarm immediately issues an audible and visual alarm to remind people to take early safety measures, and drive the exhaust air and cut off the solenoid valve to prevent explosion, fire and poisoning accidents. The Information can also be transmitted to the computer via the RS485 bus or through ethernet and 4G communication data transmission to our cloud platform.

The control panel system supports input signals from various standard detectors, such as carbon monoxide CO sensor, hydrogen sulfide H2S sensor, sulfur dioxide SO2 sensor, hydrogen H2 sensor, ammonia NH3 sensor, oxygen O2 sensor, chlorine CL2 sensor and combustible gases CH4 sensor,etc.

2.Features:

(1).Display: 4.3-inch color screen, touch operation.

(2).Storage: SD memory card 32G capacity storage,data analysis;

(3). Alarm: audible and visual alarm system.

(4).Communication: Supports multiple communication modes, such as analog signal 4-20mA, digital signal RS485, RF433M wireless;

(5).Network: Supports Ethernet and 4G communication to ensure fast and stable data transmission and remote monitoring and control. (Optional)

(6).Control: Supports 8-way passive relay control, and can configure linkage mode and switch mode.

(7). Data management: Supports cloud data management, can view and manage monitoring data anytime and anywhere (optional). (The cloud platform can realize alarm push such as SMS, WeChat, and email).

(8). Backup power: large-capacity backup power to ensure the continuous operation(Optional)

3.Technical parameters:

4.Application:

The gas alarm controller is widely used in many industries, including oil and gas, petrochemicals, pharmaceuticals, food and beverage, wastewater treatment, mining, and many others. It is particularly useful in confined spaces, where there is a potential for the buildup of hazardous gases. The device can be customized to detect specific gases and to meet the needs of individual industries.The gas alarm control cabinet is designed to receive signals from gas detectors and activate audible and visual alarms in case of a gas leak. It can also shut down systems, activate ventilation, and alert emergency services if necessary. It is a crucial tool in preventing accidents and saving lives.

5.Maintenance:

(1). Regularly check the sensors and control panel. The sensors need to correctly detect the presence of gases and provide accurate readings. If the sensors are not working correctly, it may lead to false alarms or, worse, missed alarms.

(2). Check the alarm system regularly. Test the alarm's sound and make sure it can be heard from different parts of the room or building.

(3). Ensure proper power supply. The LCD gas alarm control panel requires a steady power supply to work. Check the power source and connection regularly to avoid power interruptions that may result in false alarms.
