1.Brief introduction

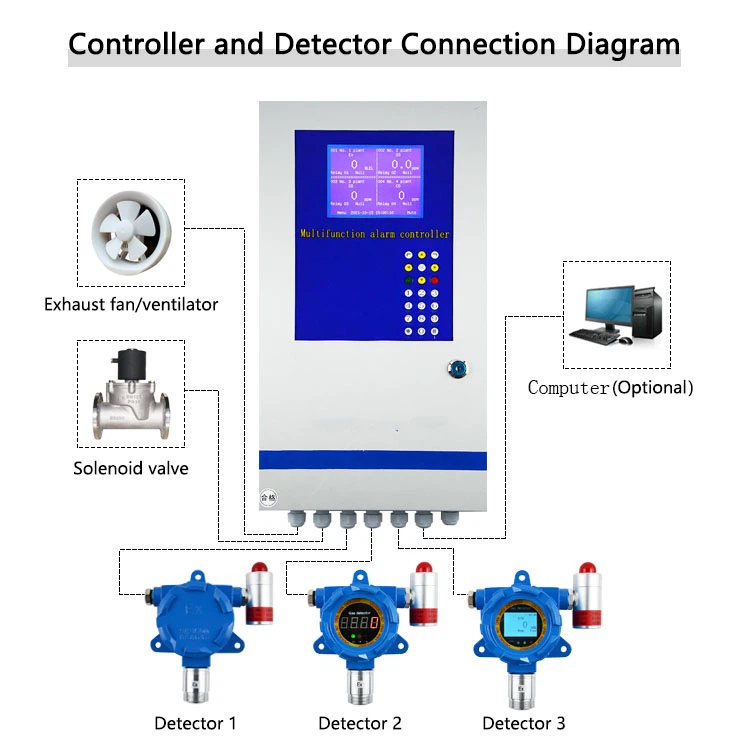

The LPG gas control panel is a specialized piece of equipment that monitors the presence and concentration of LPG gas in the environment and triggers appropriate responses to prevent accidents or damages. The cabinet typically consists of several components, such as a gas sensor, a control panel, an alarm system, and a shut-off valve. The gas sensor detects the LPG gas and sends signals to the control panel, which evaluates the signals and activates the alarm or the shut-off valve if necessary. The alarm warns the occupants of the area about the gas leak, while the shut-off valve cuts off the gas supply to prevent further leakage or combustion.
LPG gas (liquefied petroleum gas) is widely used for cooking and heating in homes, restaurants, and industrial settings. While LPG is a highly efficient and convenient source of energy, it also poses certain safety risks, especially when it leaks or accumulates in confined spaces. To address these risks, various types of gas detection and control systems have been developed, including LPG gas detection control cabinets.
LPG gas detection control cabinets are essential tools for ensuring the safety and efficiency of LPG gas usage in various industries and settings. They provide reliable and accurate detection of LPG gas leaks and enable timely and effective responses, such as alarms and shut-offs, to prevent accidents or damages. With their advanced sensor technology, intelligent control circuitry, and durable design, LPG gas detection control cabinets can meet the most demanding requirements of gas safety and management.
2.Features
(1). durable and corrosion-resistant casing made of stainless steel or aluminum alloy to protect the components from harsh environments and mechanical damage;
(2). multiple gas sensors of various types and capacities to detect different levels and locations of LPG gas, such as catalytic sensors, infrared sensors, electrochemical sensors, and ultrasonic sensors;
(3). advanced control circuitry with microprocessors and programming software to process the sensor signals and generate appropriate responses, such as visual displays, audible alarms, text messages, or remote notifications;
(4). modular design and expandable configuration to allow future upgrades or modifications, such as additional sensors, communication interfaces, or data storage devices;
(5). integrated power supply and backup systems, such as batteries, generators, or solar panels, to ensure continuous operation and minimize downtime.
3.Technical parameters
|
Product name: |
LPG gas control panel |
|
Size： |
480 mm * 250 mm * 130 mm |
|
Weight: |
6kg |
|
Working voltage: |
AC110 or 220V |
|
Output voltage: |
DC24V |
|
Channel number: |
Simulation can provide 16-32 channels, digital signals can provide up to 255 |
|
Display: |
Can display 4 or 14 road one screen at a time, English interface |
|
Signal input: |
4-20 mA signal input or RS485 |
|
Optional function: |
Communication interface:(optional) 1 road RS232 and RS485 ModBus RTU protocol; Connect to computer for data analyzer |
|
Control output: |
4-20mA/ RS485 Modbus protocol, 4-20mA output panel is with one public relay |
|
Connection mode: |
3*1.5mm2 three wires shield cable |
|
Working ambient: |
Temperature range:- 10 ℃ ~ 50 ℃ |
|
Humidity:15% ~ 70% (RH) no condensation |
4.Application
The applications of LPG gas control panels are diverse and widespread, ranging from homes and kitchens to factories and oil rigs. Some of the typical industries and settings that use LPG gas detection control cabinets are:
(1). residential and commercial buildings, such as apartments, hotels, restaurants, and shopping malls, where LPG gas is used for cooking, heating, or lighting;
(2). industrial and manufacturing facilities, such as chemical plants, steel mills, and refineries, where LPG gas is used as fuel or feedstock;
(3). transportation and storage facilities, such as gas pipelines, tanks, and cylinders, where LPG gas is stored or transported;
(4). hazardous and explosive environments, such as mines, tunnels, and oil rigs, where LPG gas can pose high risks of fires, explosions, or suffocations.
5.Maintenance
LPG gas control panels are critical in ensuring the safety of buildings and individuals where gas is used as a fuel source. Regular maintenance and upkeep of the control cabinets are essential in ensuring that they are functioning properly and are always ready to detect any gas leaks or emergencies.
To ensure the optimal performance of the LPG gas detection control cabinets. The technician will check the condition of the sensors and replace them if necessary. They will also conduct a thorough examination of the control panels and replace any faulty components or wiring.
It is also important to conduct routine checks on the control cabinets to ensure that they are functioning correctly. This includes checking the alarms and performing a system test to ensure that the sensors are detecting gas leaks accurately. Regular inspections can help to prevent false alarms and reduce the risk of gas-related emergencies.
