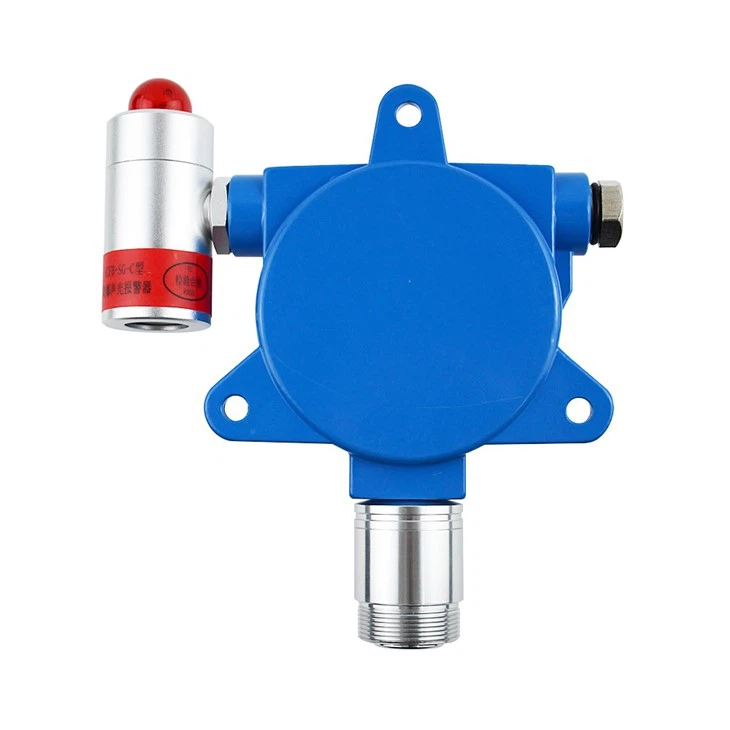

Fixed NH3 Gas Detector

1. Brief introduction:

LCD fixed nh3 gas detectors are advanced and reliable devices used for detecting ammonia gas leaks in various industrial and commercial settings. These detectors feature a fixed LCD screen that displays the concentration and status of the ammonia gas detected in real time.

2. Detailed introduction:

Fixed LCD ammonia gas detector is a cutting-edge technology that detects ammonia gas leaks in industrial environments. This device has been designed to provide accurate and reliable detection of ammonia gas to ensure the safety of the workers and the environment.

The device works by using a sensor that is designed to react with the ammonia gas in the air. The sensor generates an electrical signal that is proportional to the concentration of the gas. The signal is then processed by the detector's microprocessor, which is programmed to trigger an alarm if the concentration of ammonia gas exceeds a pre-set threshold. One of the key benefits of using a fixed ammonia gas detector is that it provides continuous monitoring of the gas concentration in the air. This means that any changes in the concentration of ammonia gas can be detected and addressed before they become a hazard. Additionally, fixed ammonia gas detector can be connected to a centralized system that can provide real-time monitoring and control of the gas concentration in multiple locations.

Fixed nh3 gas detectors can be installed in various locations depending on the specific application. They should be installed at a height of 4-5 feet from the ground level for optimal ammonia gas detection. The detectors should be installed in well-ventilated areas, away from potential sources of interference such as direct sunlight, heat, and moisture.

3. Features

1) Sensitive sensor

2) LCD display

3) Water proof,dust proof and explosion proof

4) Low and high alarm points,can be set by user

5) Detect ammonia gas concentration by natural diffusion mode

6) DC24V power supply,24 hours continuous monitoring

7) 4-20mA or RS485 digital output are optional

8) Can output one or two on-off signals, can drive ventilator or solenoid valve

9) Can be connect with gas controller,PLC,DCS or computer

10) Adopts aluminum shell material with high strength, heat resistance and corrosion resistance

11) ISO9001,CE, ATEX,CNEX explosion proof certificates are approved

4. Products parameters

5. Application

(1) Food processing plants

(2) Livestock farming

(3) Chemical manufacturing

(4) Refrigeration systems

(5) Brewery and distillery

(6) Wastewater treatment plants

(7) Pharmaceutical manufacturing

(8) Pulp and paper mills

(9) Textile manufacturing

6. Maintenance

Routine maintenance of fixed nh3 gas detectors is essential to ensure optimal performance and longevity. The detectors should be inspected and tested periodically to ensure they are working correctly. Calibration is necessary to maintain accuracy and precision. The sensors should be cleaned regularly to prevent dust, debris, and other contaminants from interfering with their function. The detectors should be replaced or repaired immediately if there is any damage or malfunction.
