Combustible gas like lpg,CNG,CH4,Propane are explosive gas,this gas detector is used to detect combustible gas leak concentration in air continuously.
Application:

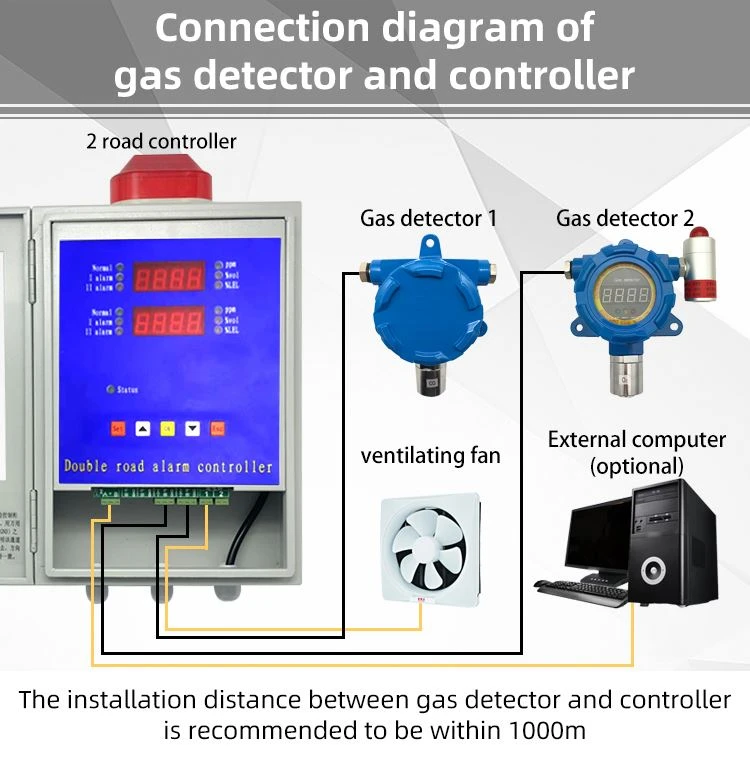

This fixed lpg combustible gas detector is usually used in lpg warehouse,restaurant,oil field,gas station, laboratory or chemical plant where the gas exist. The shell is explosion proof, with an extra alarm lamp,when the gas concentration reaches or exceeds the alarm point, the lpg methane detectro will make alarm;It can also send signal to a detection controller to drive fan or solenoid valve when alarming
Specifications:
| Detect Gas: | LPG/ch4/propane or other combustible gas |
| Measure range: | 0-100%lel |
| Resolution: | 1%lel |
| Response time: | ≤20s |
| Working voltage: | DC24V |
| Output signal: | 4-20 mA |
| Options function: | with audible & visual alarm need $20/pc |
| Transmission cables: | three core shielded cable 3 x 1.5 mm2 |
| Features: | with relay output signal |
| Temperature range: | - 20 ℃ ~ 50 ℃ |
| Humidity | 15%-90%(RH) |
| Certificate: | CE,ATEX,ISO9001 |
| Explosion-proof marks: | Exd II CT6 |
| IP class: | IP65 |
| Transmission distance: | <1000 m |
Installation:
 |  |
