1.Brief introduction

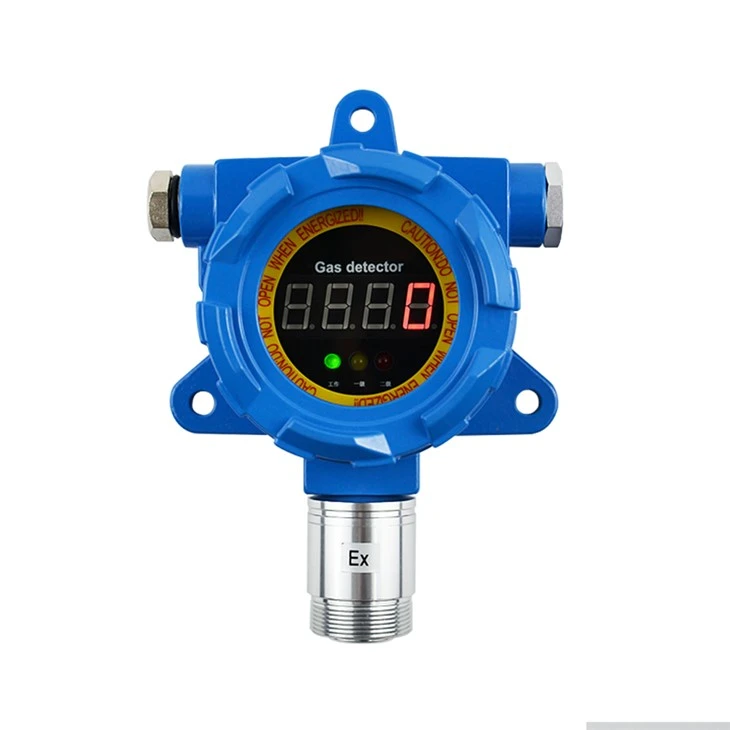

Fixed LPG gas monitors are devices that are used to detect the presence of LPG gas in a confined area. They are designed to detect even the smallest concentrations of gas and are used to ensure that the area in which they are installed is safe for continued use. These detectors are widely used in industries that use LPG gas or have LPG tanks.
The detectors are highly reliable and efficient in detecting LPG gas. They are equipped with advanced sensors that are designed to accurately detect the presence of gas in the environment. They are also designed to be resistant to environmental factors such as humidity and temperature variations. This ensures that the detectors can operate optimally despite being exposed to varying environmental conditions.
One of the key advantages of using fixed LPG gas detectors is their ability to detect gas leaks before they become a major hazard. When the concentration of LPG gas exceeds the safe limit, the detectors sound an alarm, providing a warning to factory workers or homeowners to evacuate the area. This early warning can prevent accidents and save lives.
2.Features
(1). High-precision sensors: The fixed LPG gas monitor system is equipped with high-precision sensors made in UK that can detect even subtle changes in gas concentration. These sensors can detect not only LPG but also other gases such as methane and propane.
(2). Real-time monitoring: The system continuously monitors the gas concentration and alerts in real-time if it exceeds the safety threshold. This helps in taking prompt action to avoid any potential danger.
(3). Alarm system: The system comes with an alert system such as alarms, flashing lights, and SMS notifications, etc., to notify designated people in case of any anomalous gas concentration.
(4). User-friendly interface: The system is equipped with an easy-to-use interface, and the data can be accessed in real-time.
3.Products parameters.
|
Product name: |
LPG gas monitor |
|
Product Size: |
144*190*74mm |
|
Product weight: |
1130g |
|
Detect Gas: |
CH4 LPG C3H8 H2 etc flammable gas |
|
Measure range: |
0-100%LEL |
|
Resolution: |
1%LEL |
|
Response time: |
≤30s |
|
Working pattern: |
Continuous work |
|
Working voltage: |
DC24V |
|
Output signal: |
4-20 mA/RS485 |
|

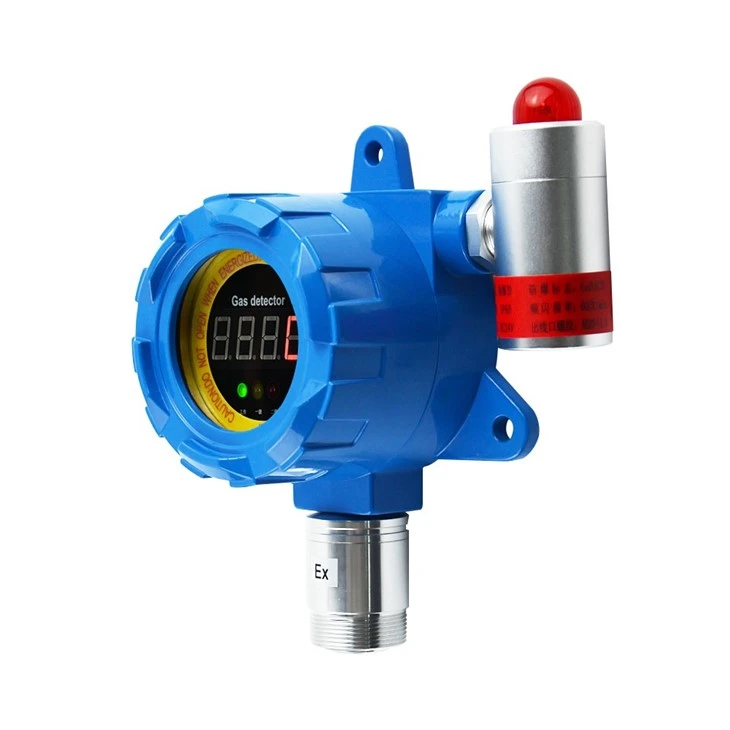

Options function: |
With audible & visual alarm need $15/pc |
|
Connection: |
3 wires |
|
Transmission cables: |
Three-wire system adopts three core shielded cable 3 x 1.5 mm2 |
|
Features: |
3 wires with relay output signal |
|
Temperature range: |
- 20 ℃ ~ 50 ℃ |
|
Humidity |
15%-90%(RH) |
|
Certificate: |
CE,ATEX,ISO9001 |
|
Explosion-proof marks: |
Exd II CT6 |
|
IP class: |
IP65 |
|
Transmission distance: |
<1000 m |
4.Application
Fixed LPG gas monitors are commonly used in industries such as oil and gas, petrochemicals, pharmaceuticals, food processing, and manufacturing. They are also widely used in homes and buildings that use LPG for heating and cooking purposes. Industrial plants that use LPG for various purposes such as heating, welding, and petrochemical processing can install the system to ensure safety.
5.Maintenance
Industrial plants that use LPG for various purposes such as heating, welding, and petrochemical processing can install the system to ensure safety.
(1). Regular Cleaning
Cleaning the device is the most straightforward method of maintaining it. Regular cleaning of the sensor, filters, and other components helps to extend the device's lifespan and improve its performance. Typically, sensors should be cleaned every six months, or more frequently, if they are located in a dusty or polluted environment.
(2). Calibration
Regular calibration of the gas detector is essential for accurate and reliable readings. Calibration requires equipment and expertise, so it is recommended that service providers or manufacturers carry out this task.
(3). Sensor Replacement
Over time, the sensor will begin to wear and lose its accuracy. It is essential to replace sensors periodically to ensure the device operates correctly. The frequency of changing sensors will vary depending on the environmental conditions and usage of the device.
(4). Power
Always ensure the device is connected to a reliable and stable power source. Verify the voltage supplied to the device matches the manufacturer's recommended voltage. If the source voltage is unstable or fluctuates, this may cause the device to malfunction or lose calibration.
(5). Check Installation and Set-up
Check the installation and setup process as part of regular maintenance. Ensure the device is installed as per manufacturer's guidelines, and the setup parameters are configured correctly.
