1.Brief introduction

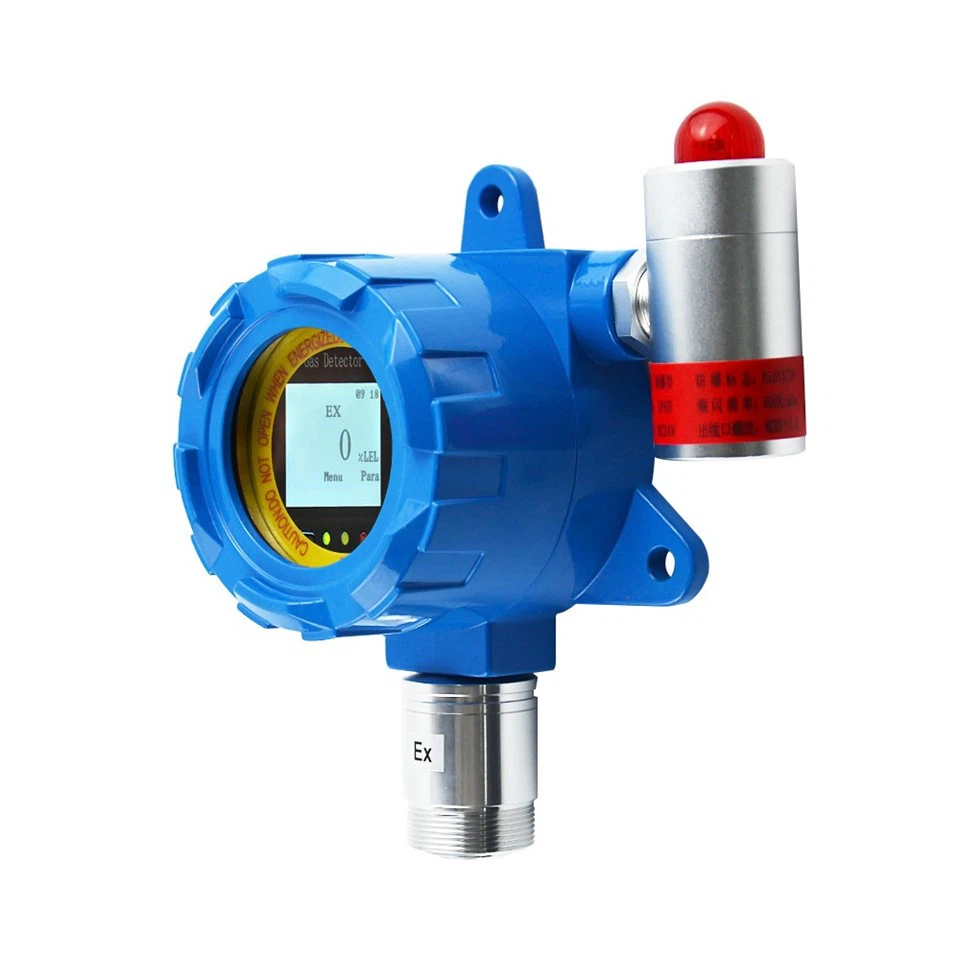

Liquid crystal display ethylene oxide C2H4O detector gas transmitter is a high-tech device used for measuring and transmitting the concentration of ethylene oxide gas in the atmosphere.The LCD provides a clear and easy-to-read interface for monitoring the gas concentration levels in real time. This allows operators to quickly identify any potential hazards and take corrective actions to ensure the safety of personnel and the environment.
Fixed Ethylene Oxide (EtO) gas detectors are specialized devices designed to continuously monitor the presence of ethylene oxide gas in industrial environments. Ethylene oxide is a highly flammable and reactive gas used in various industrial processes, including sterilization and chemical manufacturing. Due to its hazardous nature, it is crucial to have reliable detection systems in place to ensure safety and compliance with regulatory standards.
Fixed ethylene oxide gas detectors are essential for maintaining a safe working environment in industries where ethylene oxide is used. Their advanced features and reliable performance make them a critical component of industrial safety systems.
2.Features.
(1). Continuous Monitoring: These C2H4O detectors provide real-time, continuous monitoring of ethylene oxide concentrations, ensuring immediate detection of any leaks or hazardous levels.
(2). High Sensitivity and Accuracy: Equipped with advanced sensors, fixed EtO gas detectors offer high sensitivity and accuracy, capable of detecting even low concentrations of the gas.
(3). Alarm Systems: Integrated alarm systems, including visual and audible alerts, promptly notify personnel of any detected ethylene oxide, enabling quick response to potential hazards.
3.Products parameters.
|
Product name |
Ethylene Oxide ETO sensor C2H4O detector |
|
Product Size: |
144*190*87mm |
|
Product weight: |
1130g |
|
Detect Gas: |
C2H4O |
|
Measure range: |
0-100PPM |
|
Resolution: |
1PPM |
|
Response time: |
≤40s |
|
Working voltage: |
DC24V |
|
Output signal: |
4-20 mA |
|
Optional function: |
With audible & visual alarm need $15/pc |
|
Connection: |
3 wires |
|
Transmission cables: |
Three-wire system adopts three core shielded cable 3 x 1.5 mm2 |
|
Features: |
3 wires with relay output signal |
|
Temperature range: |
- 20 ℃ ~ 50 ℃ |
|
Humidity |
15%-90%(RH) |
|
Certificate: |
CE,ATEX,ISO9001 |
|
Explosion-proof marks: |
Exd II CT6 |
|
IP class: |
IP65 |
|
Transmission distance: |
<1000 m |
4. Application
(1). Medical and Pharmaceutical Industry: Ethylene oxide is commonly used for sterilizing medical devices and equipment. C2H4O detectors are crucial in sterilization facilities to monitor gas levels and ensure a safe working environment.
(2).Chemical Manufacturing: In chemical plants where ethylene oxide is produced or used as a precursor in chemical reactions, these detectors help in monitoring gas leaks and preventing hazardous situations.
(3). Research Laboratories: Laboratories that handle ethylene oxide for research purposes use these detectors to maintain a safe environment for researchers and prevent accidental exposure.
5.Maintenance
C2H4O detectors should be calibrated regularly according to the manufacturer's recommendations. Calibration ensures accurate detection and response to ethylene oxide gas levels; Sensors have a limited lifespan and should be replaced as per the manufacturer's guidelines or when performance degradation is noticed; Keep the detectors clean and free from dust, dirt, and other contaminants that could interfere with sensor operation.
6.Contact
E-mail: golf@huafankj.com WhatsApp/Wechat: +0086 15721910713
