1. Brief introduction:

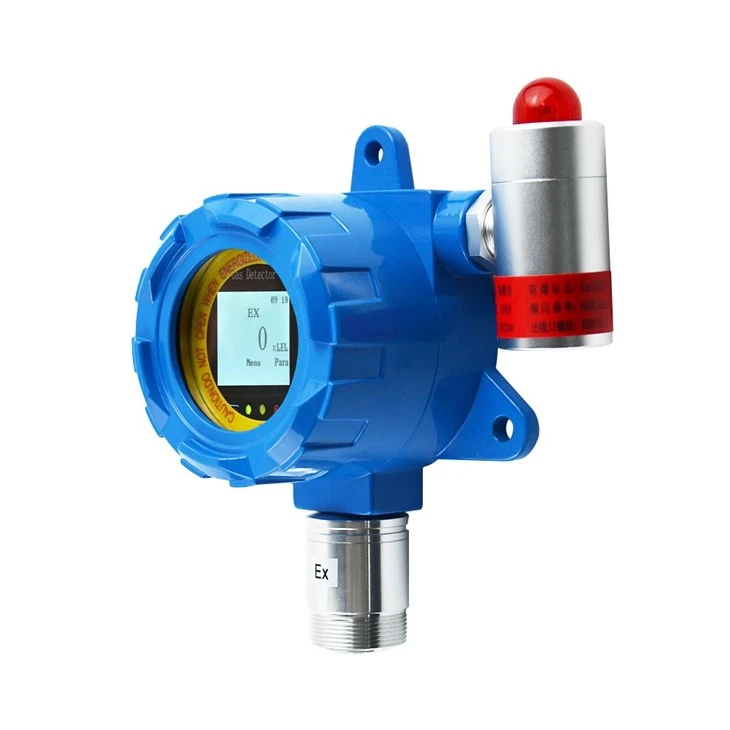

The fixed hydrogen gas analyzer consists of a hydrogen gas sensor, electronic control unit, and alarm system. The hydrogen gas sensor is typically an electrochemical type sensor that detects the hydrogen gas concentration in the air. The electronic control unit processes the data detected by the sensor and activates the alarm system when the hydrogen gas concentration exceeds the predetermined threshold.
2. Detailed introduction:
Fixed online hydrogen gas analyzer detector is a specialized device, primarily used to detect and analyze the presence of hydrogen gas in a particular area. This equipment is designed to be installed in a fixed location and will consistently monitor for the presence of hydrogen gas.
The device utilizes advanced detection technology to detect hydrogen gas at very low concentrations. A built-in gas sensor is designed to respond promptly to the presence of hydrogen gas, triggering an alarm and shutting down the process when necessary.
This equipment features excellent stability, high accuracy, and is designed to withstand harsh industrial environments. This device is also equipped with a digital display that provides real-time monitoring and allows users to customize alerts and thresholds.
Installation is seamless, and the device can be integrated with existing building automation systems, making it an ideal choice for industrial applications where constant and accurate monitoring is a top priority.
Overall, the fixed online hydrogen gas detector is an essential component of any safety system in industrial settings. With its excellent detection capabilities, high accuracy, and reliable performance, this equipment helps to ensure the safety of personnel and equipment.
3. Products parameters:
|
Name |
hydrogen gas analyzer |
|
Sensor |
catalytic combustion Sensor/electrochemistry |
|
Measure range |
0-100%lel/0-1000ppm |
|
Output singal |
4-20mA,RS485 modbus,Relay |
|
Response time |
≤20s |
|
Temperature range |
- 20 ℃ ~ 50 ℃ |
|
Transmission distance |
＜ 1000 m |
|
Optional |
sound and light alarm light, multi gas alarm controller |
|
Standard package |
Gas detector, Instruction in English, Certificate, carton package |
4. Detection gas:
|
No |
Detection Gas |
Gas |
Measure Range |
Resolution |
Alarm Point (Low/High) |
|
1 |
Combustible Gas |
EX |
0-100% LEL |
1% LEL |
25 / 50% LEL |
|
2 |
Oxygen |
O2 |
0-30% VOL |
0.1% VOL |
18% / 23% VOL |
|
3 |
Hydrogen Sulfide |
H2S |
0-200 ppm |
0.1 ppm |
10 / 20 ppm |
|
4 |
Carbon Monoxide |
CO |
0-1000/2000 ppm |
1 ppm |
50 / 150 ppm |
|
5 |
Nitrogen Dioxide |
NO2 |
0-20 ppm |
0.1 ppm |
5 / 10 ppm |
|
6 |
Nitric Oxide |
NO |
0-250 ppm |
1 ppm |
25 / 50 ppm |
|
7 |
Carbon Dioxide |
CO2 |
0-5% VOL |
0.01% VOL |
0.2-0.5 VOL |
|
8 |
Sulfur Dioxide |
SO2 |
0-100 ppm |
0.1 /1 ppm |
5 / 10 ppm |
|
9 |
Chlorine |
CL2 |
0-20 ppm |
0.1 ppm |
1/ 2 ppm |
|
10 |
Ammonia |
NH3 |
0-200 ppm |
1 ppm |
35 / 70 ppm |
|
11 |
Hydrogen |
H2 |
0-1000 ppm |
1 ppm |
35 /70 ppm |
|
12 |
Phosphine |
PH3 |
0-1000 ppm |
1 ppm |
5 / 10 ppm |
|
13 |
Hydrogen Chloride |
HCL |
0-100 ppm |
1 ppm |
10 / 20 ppm |
|
14 |
Ozone |
O3 |
0-50 ppm |
0.1 ppm |
5/ 10 ppm |
|
15 |
Hydrogen Flouride |
HF |
0-50 ppm |
1 ppm |
5/ 10 ppm |
|
16 |
Methanol |
CH4O |
0-100 ppm |
1 ppm |
5 / 10 ppm |
|
17 |
Formaldehyde |
HCHO |
0-100 ppm |
1 ppm |
10 / 20 ppm |
|
18 |
Ethylene Oxide |
ETO |
0-100 ppm |
1 ppm |
10 / 20 ppm |
|
19 |
Nitrogen |
N2 |
70-100 VOL |
0.1 VOL |
82/90 VOL |
|
20 |
Organic Compound |
VOC |
0-100 ppm |
1 ppm |
10 / 20 ppm |
5. Application:
The fixed hydrogen gas leak detector is widely used in various industries, including petrochemical, refining, power generation, aerospace, and laboratory settings. The detector is used to monitor areas where hydrogen gas may accumulate and pose a risk of explosion or fire.
6. Maintenance:
To ensure the optimal performance of the fixed hydrogen gas leak detector, regular maintenance is required. The maintenance typically includes calibration of the detector, checking the sensor and control unit for any anomalies, and replacing any worn-out parts. It is also important to ensure that the detector is installed in an appropriate location and the sensor is not exposed to any chemicals or substances that may affect its performance. Regular maintenance will ensure that the detector works effectively and accurately, providing a reliable early warning system in the event of a hydrogen gas leak.
