Product description:

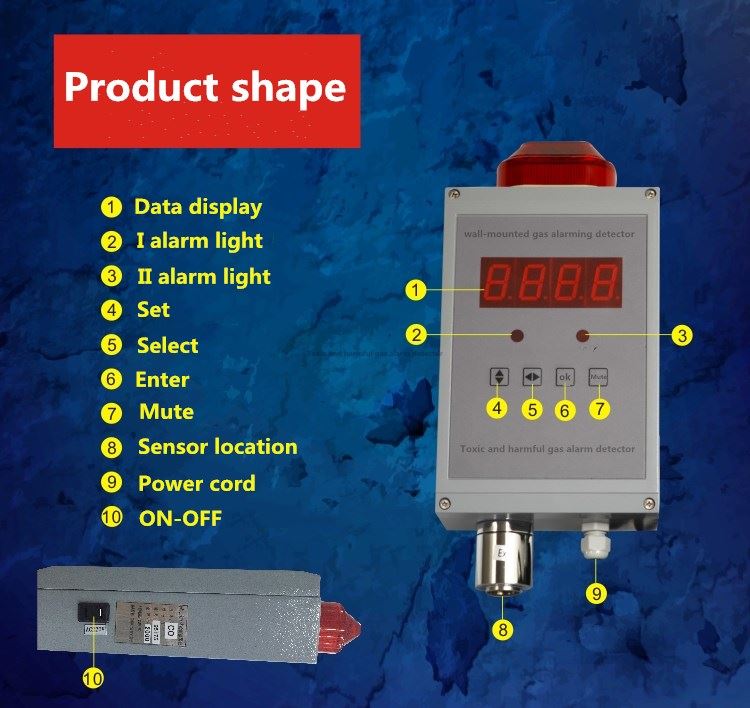

Fixed CO Gas Detector can detect toxic and harmful gas or oxygen gas as well. It monitor the gas concentration continuously in air.It is with LED display, audible and visual alarm function,two alarm level can be adjusted.The CO gas detector is usually installed at underground,warehouse,mine,and other place.
Basic parameters:
1) LED display on panel,easy operate,
2) Sound and light two alarm level setting,
3) Simple operation,easy calibration,zero and alarm settings,
4) With one channel relay, can connected with fan or solenoid valve.
Specifications:
The CO sensor life is usually 2 years in normal air, and we offer 1 year warranty for the wall mounted carbon monoxide gas detector.We recommend customer make the celibration once per year to make sure it works well.
| Size: | 23 mm * 150mm * 73 mm |
| Weight: | 1800 g |
| Sensor types: | electrochemistry method |
| Working voltage: | 110V-220V |
| Destination gas: | CO |
| Measure range: | 0-1000ppm |
| Resolution: | 1ppm |
| Response time: | less than 30s |
| Alarm: | More than 90 db alarm way: voice alarm (10 cm away from the detector measurement data) Light alarm for the LED warning light; Two alarm level. |
| Display: | LED digital display |
| Output control: | relay output (AC220V5A), signal control (switch) |
| Optional function: | 4-20 ma current signal output) |
| Installation method: | wall-mounted installation |
| Temperature range: | - 20 ℃ ~ 50 ℃ |
| Humidity: | 15% ~ 90% RH (No condensation) |
Why choose us
Our company is specialized in gas detectors since 2005 and we produce portable gas detector,fixed gas detector as well as gas detection system. product is with CE,ATEX certificate.We support OEM,ODM. can print a logo for customer to stick on the product.
