1. Brief Introduction：

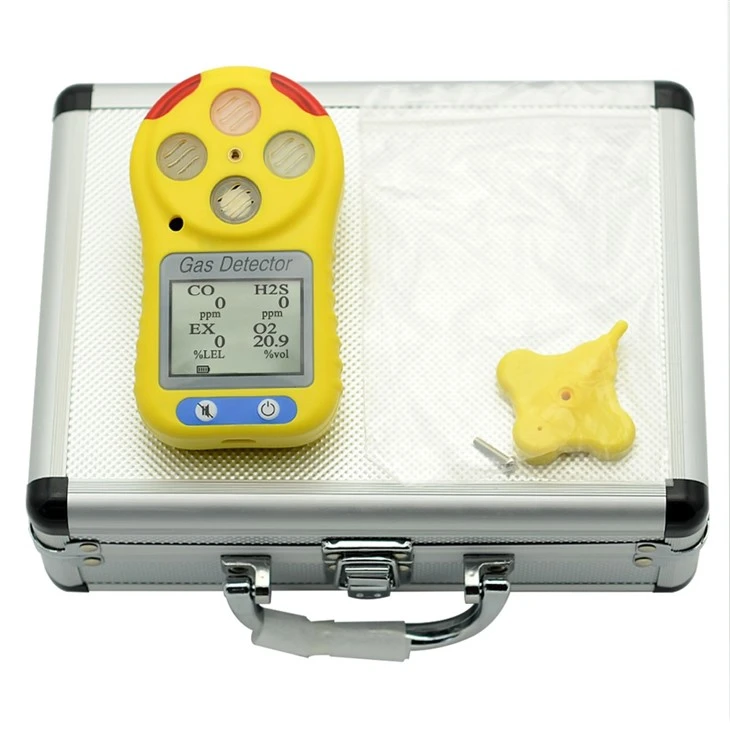

4 in 1 gas monitor multi gas detector, which can detect oxygen, hydrogen sulfide, carbon monoxide and combustible gas at the same time,can also be customized according to the detection requirements of the site.The sensor type support electrochemical,catalytic,PID or infrared type sensors.
The multi gas detector can display four kinds of gases, when gas concentration reach the alarm point,the multi 4 in 1 gas monitor will automatically conduct a series of alarm action, flashing lights, vibration and sound alarms.The detector has two buttons, LCD display and a micro USB interface can be charged by a micro USB; easy calibration, set the alarm parameters and read alarm records.
2. Detailed Introduction：
A four-in-one gas detector is an essential tool for ensuring safety in various industries such as mining, construction, oil and gas, and firefighting. It is designed to detect four types of harmful gases: oxygen (O2), carbon monoxide (CO), hydrogen sulfide (H2S), and combustible gas (LEL). These gases are hazardous to human health and life and can cause explosions, fires, and other accidents.
The four-in-one gas detector has several features that make it an excellent choice for detecting gas leaks and ensuring workplace safety. One of its advantages is its compact size, which makes it easy to carry around and use in confined spaces. It is also easy to operate, with simple buttons and clear digital displays that show gas readings in real-time.
The device is also durable and rugged, capable of withstanding harsh environmental conditions and rough handling. It is designed to be resistant to dust, water, and impact, making it suitable for use in outdoor environments and harsh industrial settings.
3. Product Features:
(1) English display interface
(2) Detection of four kinds of gases,can be set according to user needs
(3) Small and easy to carry
(4) Two buttons, simple operation
(5) Standard rechargeable lithium battery
(6) Save more than 3,000 alarm records,can logging data to PC.
4. Product Parameters:
|
Detect gas |
Portable multi gas detector 4 in 1 gas monitor |
|
Range |
H2S: 0-200ppm CO:0-1000ppm |
|
Resolution |
0.1%VOL (O2), 1ppm (CO), 1ppm (H2S), 1%LEL (EX) |
|
Sensor |
O2 /H2S / CO: electrochemical sensor |
|
Responding |
CH4＜20S，H2S/O2 < 30s,CO＜40S |
|
Sampling method |
Diffusion type |
|
Alarms |
Audible,vibration,visual alarm |
|
Display |
LCD dot matrix display, English description |
|
Operating Environment |
-20—50°C,5—90%RH(no condensation) |
|
Power Supply |
DC3.7V Rechargeable Li-ion battery |
|
Size & Weight |
121*67*30(mm),151g |
|
Certificate |
CE,ATEX |
|
Explosion-proof |
EXib IIB T3 Gb |
|
Data output |
Available for data downloading and printing (optional $50) |
5. Application:
The 4 in 1 gas monitor is a portable detection instrument that can detect multiple gases at the same time, and is usually used in the following occasions:
(1). Oil and natural gas
Detect hydrogen sulfide, carbon monoxide and other gases in the process of paint mining, transportation and storage; detect combustible gas leakage in the inlet and outlet valve group, machine pump room, compressor room, and filling room valve group.
(2). Paint and spray paint factory
Detect flammable gases such as benzene, toluene, xylene, and formaldehyde gas in workshops and warehouses; detect flammable gases such as benzene, toluene, xylene, and formaldehyde gas in spray booths and baking rooms.
(3). Mine
Detect oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, methane and other gases in relatively restricted confined spaces such as mines, pits, and mines.
(4). Metallurgy
In the metallurgical process, detect carbon monoxide, natural gas, hydrogen, methane, and oxygen in places such as blast furnace gas, converter gas, and coke oven gas; when electrolytic aluminum, it is necessary to detect carbon monoxide, carbon dioxide, hydrogen, chlorine, etc.
(5). Firefighting
In the rescue scene such as fire fighting, it is necessary to detect carbon monoxide, carbon dioxide, methane, combustible gases, etc.
(6). Construction
In the construction industry, it is necessary to detect formaldehyde, ammonia, TVOC, benzene, etc.
(7). Municipal engineering
When the sewer is desilted, it is necessary to detect combustible gases, oxygen, carbon monoxide, hydrogen sulfide, etc.
(8). Semiconductor production
In semiconductor production, the gas is used for doping, deposition and protection in the semiconductor production process. Generally, the gases that need to be detected include combustible gas, silane, dichlorodihydrosilane, ammonia, hydrogen sulfide, chlorine, methane, benzene , toluene, xylene, hydrogen cyanide, phosphine, hydrogen chloride, etc.
(9). Communication
During the construction of underground pipeline equipment and maintenance of operator lines, it is necessary to detect combustible gases, oxygen, carbon monoxide, hydrogen sulfide, etc.
