New upgrade fixed wall mounted 4 in 1 multi Gas Detector can detect up to four gases at the same time,detect,display,monitor and alarm are in one device.Combustible gas,CO SO2 H2S O2 O3 CL2 HCL NO PH3 NH3 H2 etc gases can be combined flexibly based on your requirements.
Advantages:
using imported sensors, high precision;
strong anti-interference ability;
long service life;

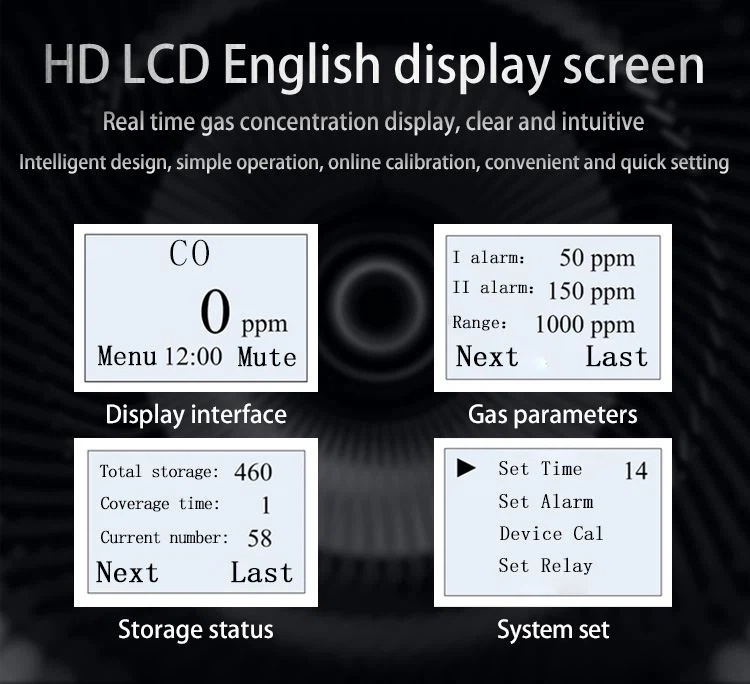

LCD display, live shows;
sound and light alarm;
intelligent design, simple operation;
easy calibration, zero, alarm settings;
can be output relay control signals;
metal shell, strong and durable, convenient installation.
Basical parameters:
Sensor: Combustible gas is catalytic type, other gases are electrochemical, except special
Responding time: EX≤15s;O2≤15s;CO≤15s;H2S≤25s
Work pattern: continuous operation
Display: LCD display
Screen Resolition:128*64
Alarming mode: Audible & Light,Light alarm-High intensity strobes,Audible alarm --above 90dB
Output control: relay output with two way(normally open, normally closed)
Storage: 3000 alarm records
Digital interface: RS485 output interface Modbus RTU (optional)
Backup power supply: provide power outage for more than 12 hours (optional)
Working power supply: AC220V, 50Hz
Temperature range:－20℃ ～ 50℃
Humidity range:10 ～ 90％（RH）No condensation
Installing mode: wall-mounted installing
Outline dimension: 203mm×334mm×94mm
Weight: 3800g
Usages:
New upgrade wall mounted LCD display multi 4 in 1 gas detector are widely used in metallurgy, chemical industry, petroleum, pharmaceutical, environmental industries work environment with toxic and harmful gas or oxygen concentration detection.
