This industrial gas control panel touch screen operation is equipped with 4.3 inch touch screen, with a friendly human-machine interface. The control panel supports multiple communication modes to achieve diversified data transmission. It configures the backup power system to ensure stable system running. Equipped with sound and light alarm device, and Support cloud data management, providing comprehensive remote monitoring and management functions.
1.Features.

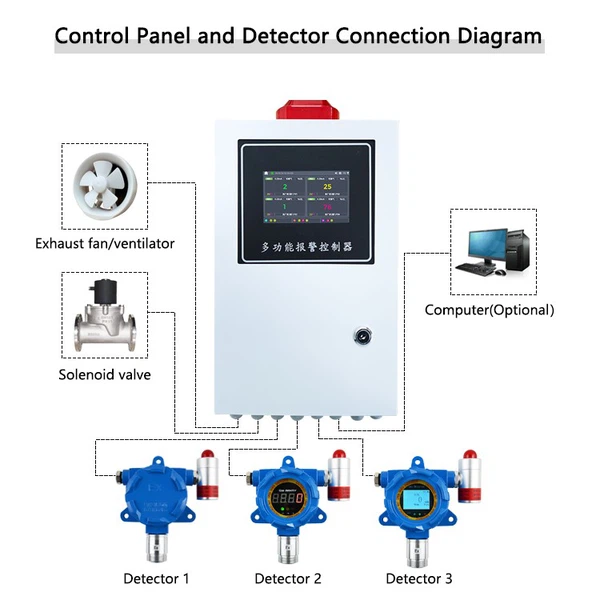

The control panel is equipped with sound and light alarm system, once the abnormal situation is detected. It support 8 passive relay control, can be configured linkage mode and switching mode. Data management supports cloud data management, monitoring data can be viewed and managed anytime and anywhere, Easy data sharing and access. The device is also equipped with a large capacity backup power to ensure the continuous operation of the device in case of power failure to ensure that data is not lost.
2.Display
The single channel display is used to observe the data change of the transmitter, so the curve is added. Display mode. All transmitters loop display, if you need to continuously observe a change. When sending the data, you can click lock, through the up and down buttons for other transmitter switching. The four-way transmitter can be displayed at the same time, and the basic information of the transmitter is displayed. When the number of transmitters exceeds four, the screen automatically switches to display, switching.
3.Alarm record
Alarm records are divided by month, each transmitter generates a record file by month. You can view the data by time. Data is exported in the same month. Alarm records are stored in detail including serial number, status, concentration, alarm, gas type, each parameter of unit, date, time.
4.Communication.
Support RS485 and RF433 bus signal input, the default RS485 output, optional ethernet and 4G data output function, mainly set the parameters of this function on the communication page. Customized host can support 3 RS485, 1 RF433, one Ethernet, one 4G, RF433 shares a channel with RS485, and Ethernet and 4G share a channel.
The gas control panel are widely used in industrial areas, such as oil and gas, chemical processing, automotive and semi-conductor manufacturing. These cabinets are designed to store, handle, and regulate various types of gases in a safe and efficient manner to ensure the safe and efficient handling of various types of gases. With their precise control and advanced safety features, they play a critical role in modern industrial processes. This liquid crystal gas control cabinet has a high degree of automation and intelligence. The latest models can be remotely controlled and monitored through a computer interface, allowing users to adjust various parameters in real-time and prevent potential accidents.
